A geofence has to be assigned to an item before it can be used.

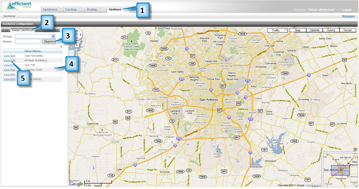

1. Click on the Geofence tab.
2. Click on Assign Geofence.
3. Click on the Search button.
4. You should now see a list of vehicles.
5. Click View/Edit next to the vehicle that you want to assign a geofence to.

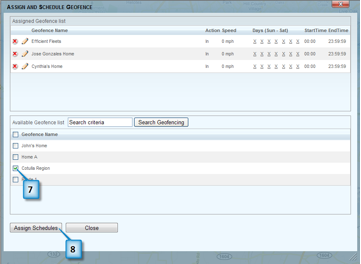

6. You should now see the Assign and Schedule Geofence dialog box.
7. Click on the checkbox next to the geofence(s) that you want to assign to this vehicle.
8. Click on the Assign Schedules button.

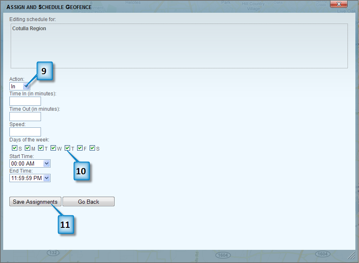

9. Select the Action. See below for a definition of the options.
10. Set the schedule for the geofence. By default a geofence is active Sunday through Saturday, 24 hours a day.
11. Click on the Save Assignments button.

Action
• In = generate a violation if the vehicle enters the geofence. If a geofence alert is setup then an alert will be created when the item enters the geofence.
• Out = generate a violation when the vehicle exits the geofence. If a geofence alert is setup then an alert will be created when the item leaves the geofence.
• Both = generate an alert when an item enters or exits the geofence.

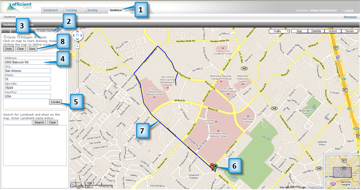

A route geofence is used to make sure that a vehicle stays on a fixed path. For example, you may have a delivery vehicle that you want to follow a designated route. A route geofence can verify that the vehicle stayed on course. All route geofences have a buffer that allows the vehicle to leave the path. This could be used for example to allow a vehicle to exit the highway to get gas. You define the buffer when you save the route.

1. Click on the Geofence tab.
2. Click on Create Geofence.
3. Click on Route.
4. Enter an address including city, state, and zip where you want to begin the route.
5. Click Locate. You should now see an icon on the map indicating where the address is located.
6. Click on the map to start drawing the route.
7. Continue clicking on the map to define the route.
8. Click on the Save button once you are done.

9. Click on the Geofence tab.
10. Click on Create Geofence.
11. Click on Route.
12. Enter an address including city, state, and zip where you want to begin the route.

13. Click Locate. You should now see an icon on the map indicating where the address is located.
14. Click on the map to start drawing the route.

15. Continue clicking on the map to define the route.
16. Click on the Save button once you are done.

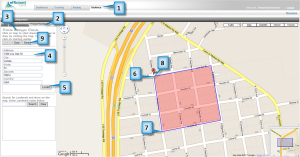

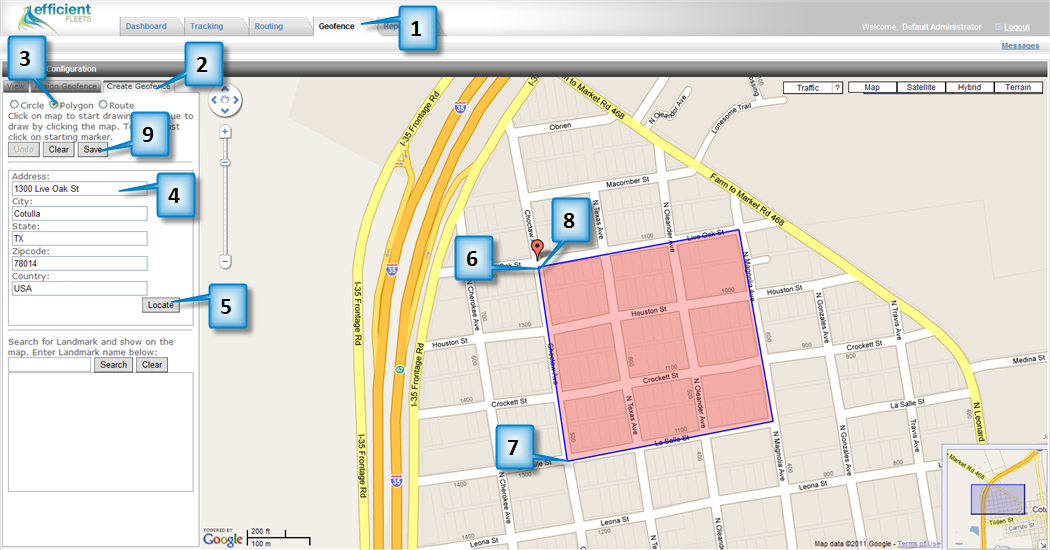

1. Click on the Geofence tab.
2. Click on Create Geofence.
3. Click on Polygon.
4. Enter an address including city, state, and zip. This location should be where you want to draw the geofence.
5. Click Locate. You should now see an icon on the map indicating where the address is located.
6. Click on the map to start drawing.
7. Continue to draw by clicking the map.
8. Click the starting icon to finish the geofence.
9. Click on the Save button.

10. Enter a geofence name.
11. Click on the Next button.

12. Click on the checkbox next to the Group(s) that you want to assign this geofence to.
13. Click on the Save button.
